Tunnel Auto Scan
Automatic cross-section scanning with motorized total stations
Automatic cross-section scanning is a customized feature developed based on the ApeSurvey app. It can connect to motorized total stations such as Leica and Sokkia to automatically scan cross-sections. The measured data can be generated into CAD drawings and data reports according to standard format requirements.
A function inside the ApeSurvey app

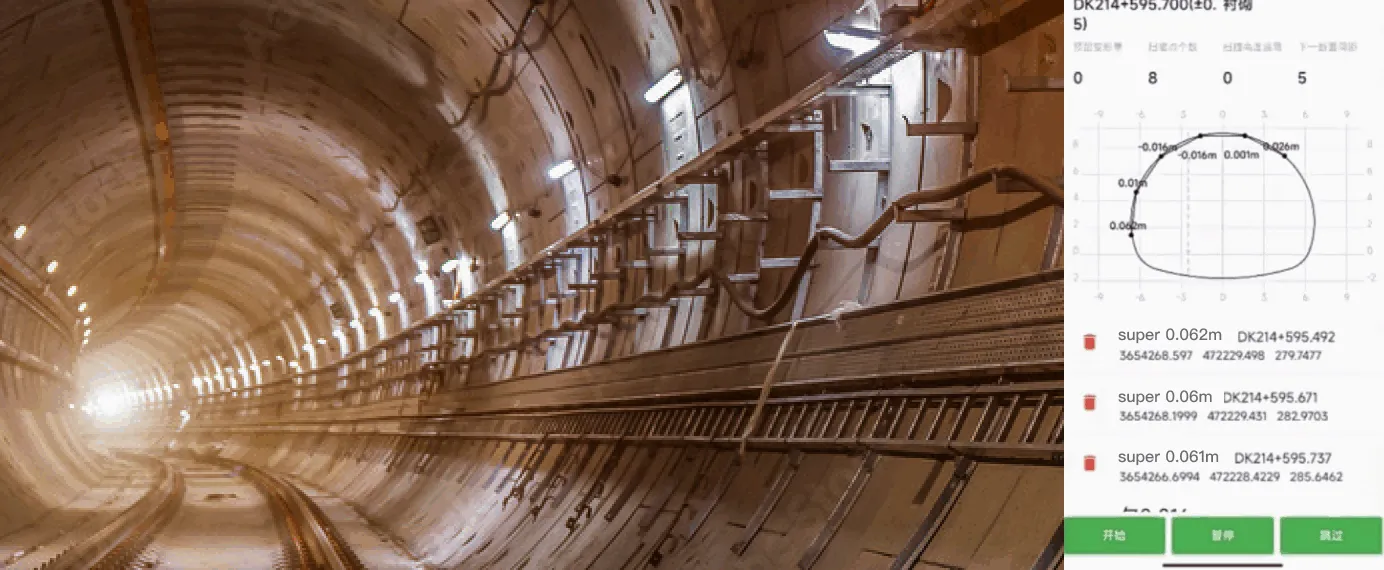

Prism-free profile observation
The instrument is driven to observe the 3D coordinates of the tunnel profile in prism-free mode. The software visually displays graphical results, provides real-time feedback on overbreak and underbreak values, and automatically records the observation data.
No manual aiming
Using the automatic cross-section scanning function with a fully automated total station enables automatic observation of cross-sections without manual aiming. Tunnel cross-section scanning and plotting can be completed effortlessly in the process.
Hardware support
Requires a motorized total station (measuring robot). Currently supported brands:
How to get it
A function inside the ApeSurvey app
Free trial
Download the public ApeSurvey app — the trial starts there. Each cross-section can scan three points during the trial; nothing else is limited.
How to activate
Activate the matching custom membership inside the ApeSurvey app. Contact our sales team for details.
